Q-Explosion Proof Medium Intensity Obstruction Light Type B/C

Details

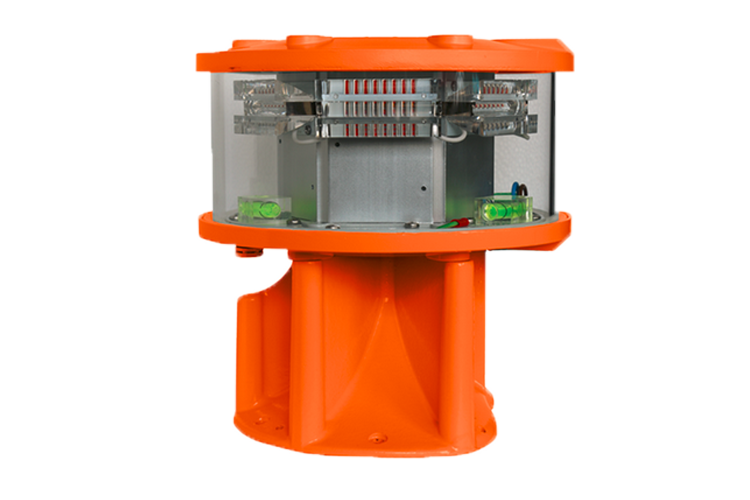

The Q-Explosion Proof Obstruction Light Medium Intensity 2000 cd is
in compliance with ICAO/FAA/CAP437. The Light is a 2000 cd red
obstruction light for Hazardous Area.

Downloads

Technical Specifications

Product Specifications

Application:

Obstruction Light

Hazardous Area:

Zone 1 and 2

Classification:

Class 1 and 2

Light Source:

LED, steady burning

Vertical Beam Profile:

as per CAP437/CAP168/ICAO

Colour Chromaticity:

as per CAP437/CAP168/ICAO

Enclosure:

Aluminium, Borosilicate glass

Mounting:

Rigid, 4x M8

Input Voltage:

1) 100-240 Vac 50-60 Hz 2) 24 Vdc

External Earthing:

up to 4mm²

Ambient Temperature:

-30°C to + 50°C

In Compliance With:

CAP437 Medium intensity ICAO Annex 14 vol. II Type A &B/C FAA L-865 / L-864

Cable glands included:

1 x M25x1.5

IP Index:

IP66

Size & Dimensions

Order Code

Input power: 100-240 Vac: Q84RI01–11R1
Input power: 24 Vdc: Q84RI01–12R1
