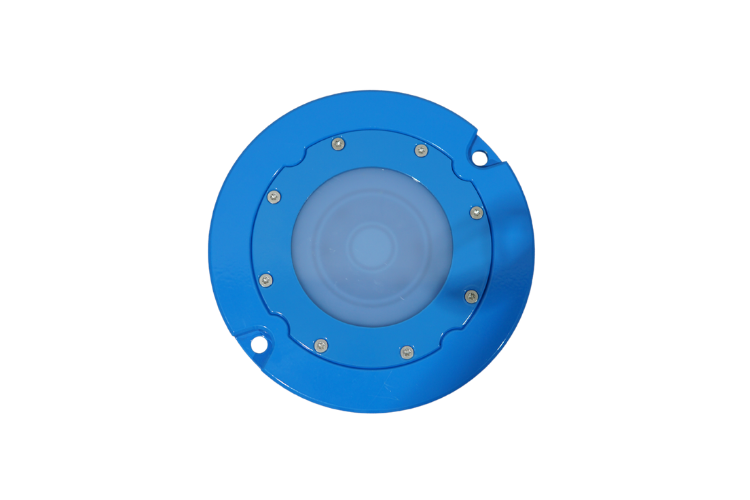

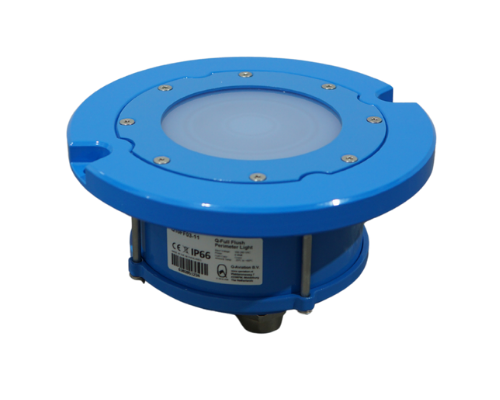

Q-Full Flush Aiming Point Light
LED helideck aiming point light designed to provide precise visual guidance for helicopter landing operations. This full flush inset fixture is installed within the FATO area to ensure unobstructed and durable performance on certified helidecks. Engineered to meet ICAO Annex 14 helideck lighting requirements.
Details
An Aimingpoint light system is provided at a heliport where it is
desirable and practicable to indicate a preferred approach
direction. The approach lighting system is located in a straight line
along the preferred direction of approach.
Downloads
Technical Specifications
Product Specifications
Application:
Classification:
Light Source:
Light Colour:
Light Intensity:
Enclosure:
Mounting:
Input Voltage:
External Earthing:
Ambient Temperature:

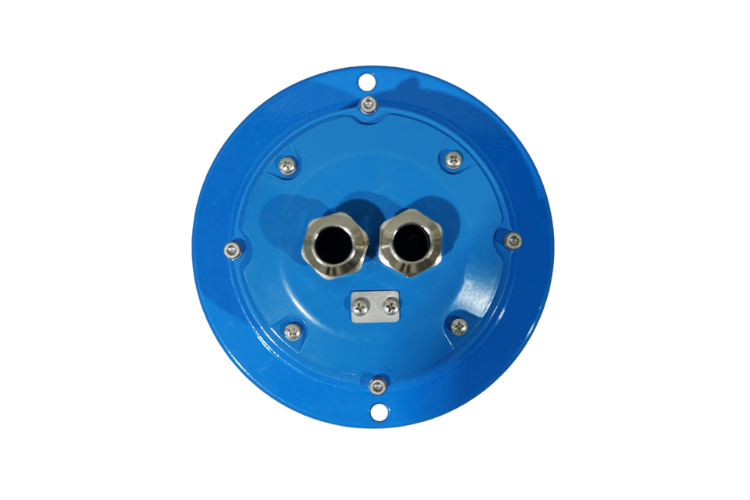

Cable glands included:
Cable Outer Dimensions:
Consumption:
Warranty:
IP Index:
Size & Dimensions
Weight:
Dimensions:
Packaging Dimensions:
Order Code
Input power 100-240 VAC: Q17FF03–11
Input power: 24 VDC: Q17FF03–12
Optional:
Including IR:
Input power 100-240 VAC: Q17FF03–11-IR
Input power: 24 VDC: Q17FF03–12-IR
Q-Reducer set M25-M20 with cable gland M20:
QM25-M20-03
