Q-Explosion proof TD/PM SYSTEM

Explosion proof LED helideck lighting system designed to provide safe and reliable visual guidance for helicopter landing operations in hazardous environments. Suitable for offshore platforms and helidecks where explosion proof certified perimeter lighting is required. Engineered in compliance with ICAO Annex 14 helideck lighting requirements.

Explore more

Details

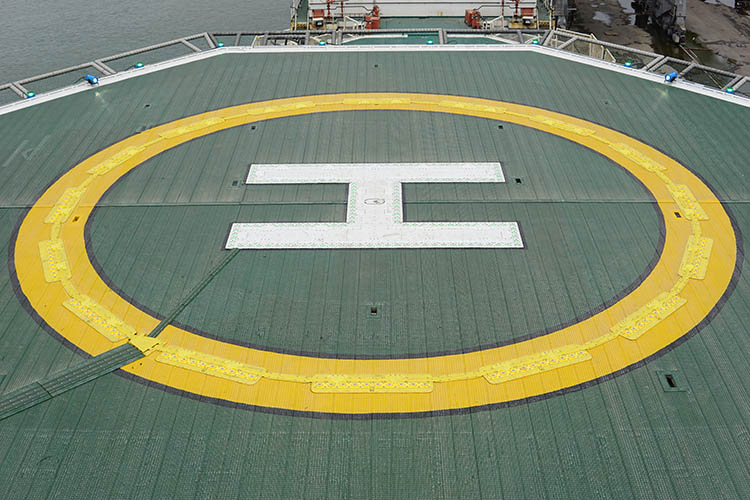

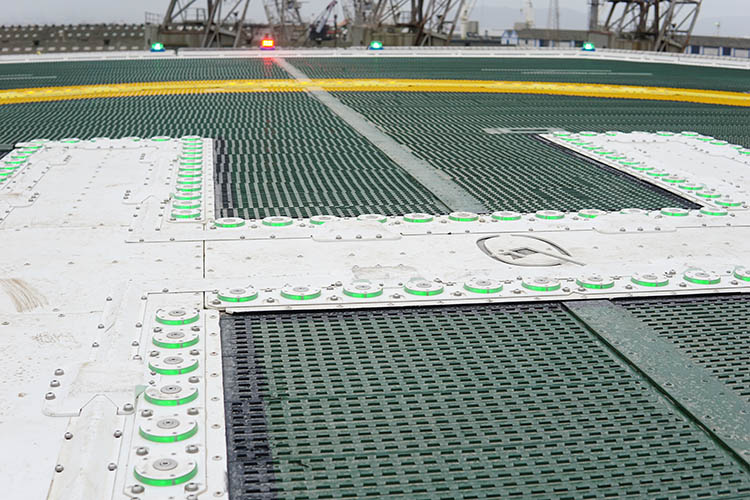

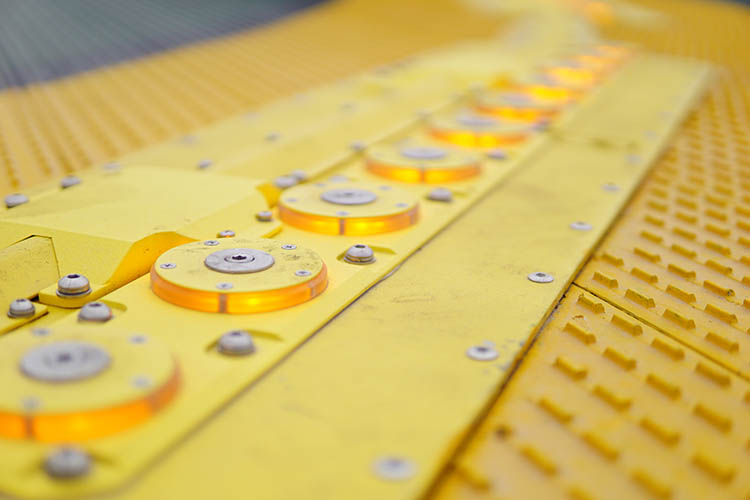

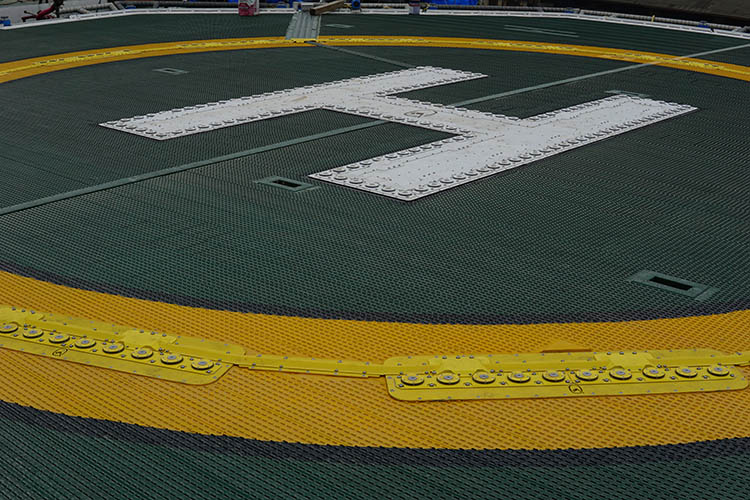

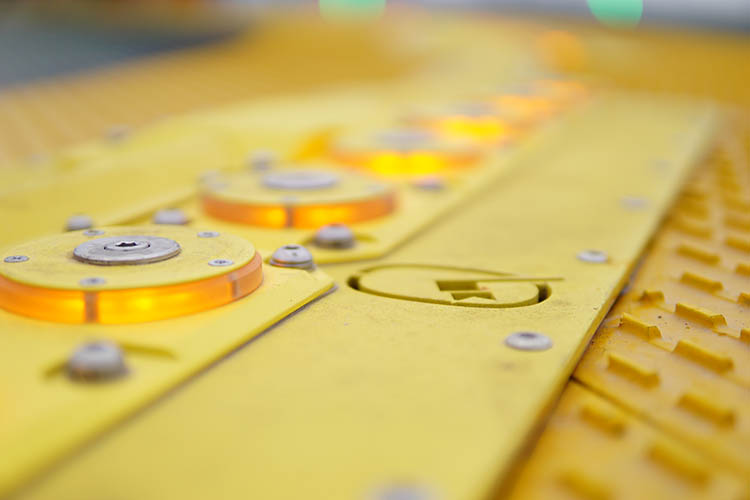

The Q-Explosion proof TD/PM system (Touchdown/Positioning Marking) is comprising of a lit circle and a lit heliport ‘H’ marking, in order to aid visual cues for helicopter pilots during landing. The Circle makes a lit marking, ensuring pilots have a clear target for the touchdown zone. The ‘H’ marking aids in accurate alignment.

Downloads

Technical Specifications

Product Specifications

Application:

Helideck

Hazardous Area:

Zone 1 and 2

Classification:

Class 1 and 2

Light Source:

LED, steady burning

Light Colour:

H-System: Green 530 nm. C-System: Yellow 590 nm

Vertical Beam Profile:

as per CAP437

Colour Chromaticity:

as per CAP437, 530 nm and 590 nm

Enclosure:

H-Unit:Aluminium,white RAL9010 grip coated C-Unit:Aluminium,yellow RAL1018 grip coated

Mounting:

Riveted / Bolted / HILTI studs

Input Voltage:

From Controller

Ambient Temperature:

-25°C to + 65°C

In Compliance With:

CAP437

Cable Outer Dimensions:

12 – 19 mm

Warranty:

2 Years

IP Index:

IP69

Size & Dimensions

Order Code

Q-Explosion Proof TD/PM System
Q64RI01 – D21- (D-Values from 16 till 20.5)
Q64RI01 – D21+ (D-Values from 21 till 25)
